With over 25 years of industry experience,
we are your one-stop-shop for CNC Machining
Short lead times for quotes/job orders and competitive pricing.
Our in-house inspection team ensures quality and accuracy of final products.
Capabilities
industries
Aviation
Energy
Medical
Military & Defense
Motorsports
STOCK
Bar stock
Plate stock
Extrusions
Materials
Aluminum
Stainless Steel
Brass
Plastics
Tool Steel
Shop Equipment
Lathes
Nakamura-Tome Precision Lathe

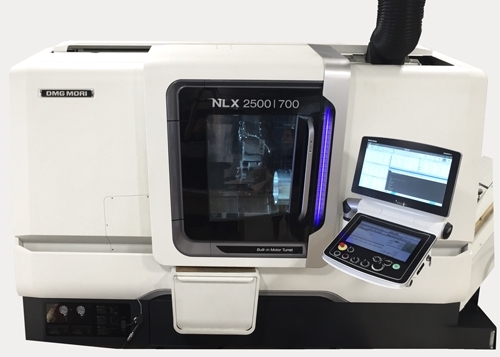

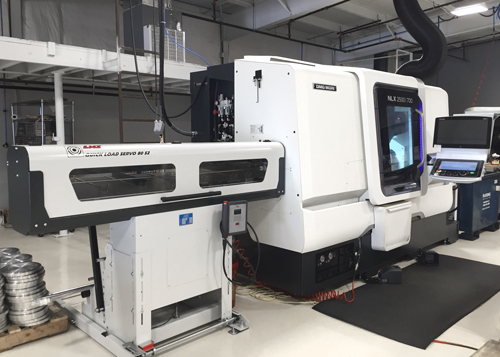

DMG Mori NLX 2500/700 CNC Lathe
10" main spindle chuck with 6" sub spindle
Live tooling
High speed chip conveyor
Bar feeder
12 tool ATC
Mills

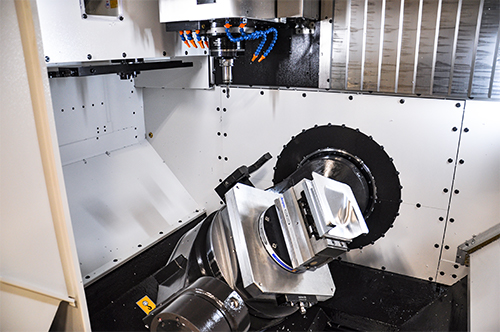

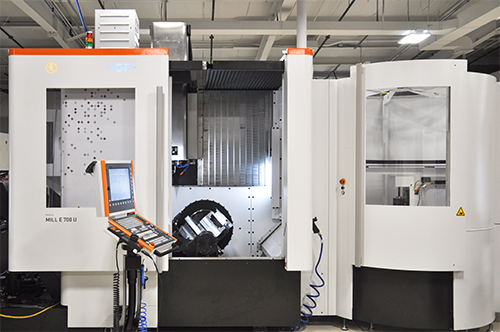

Mikron 5-Axis E 700 U
Travel: 27.55”X / 23.62”Y / 19.68”Z
5 sided machining of complex parts produced in one setup
High dynamic 20,000 RPM spindle
60 tool ATC
Delphin pallet pool 400X400mm
Mori Seiki Duravertical 5100 Milling Center
20" X 40" machining volume
10,000 RPM spindle
30 tool ATC

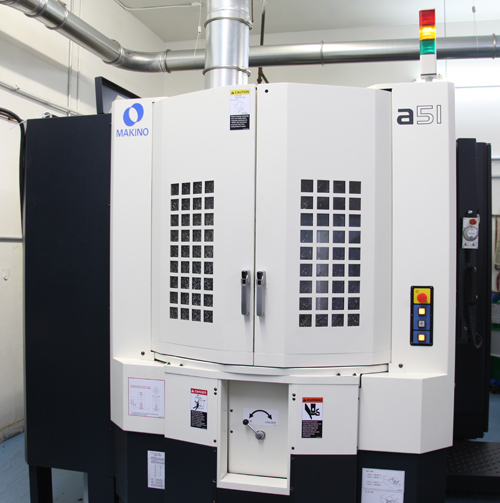

Makino A51 Horizontal Machining Center
Travel: 22”X / 22”Y / 23.6”Z
14,000 high speed high power spindle
240 nm torque
Dual supported tool change arm
60 tool high speed ATC (0.9 sec)
Okuma M560-V Vertical Machining Center
Travel: 41”X / 22”Y / 18”Z
15,000 high speed spindle
32 tool ATC
MIDACO auto door system installed
LNS high efficiency chip conveyor
Robots
Universal Robots UR10e
Attached to our Okuma M560-V
51” reach
22lbs max payload
ROBOTIQ double handed grippers
Vention custom extrusion robot workspace
Custom robot pedestal to mount to the Okuma
Quality Control
Temperature and humidity controlled shop
TESA Micro-Hite 600 Height Gage
.0001" Resolution
24"/60mm
1D & 2D measurement in rectangular/polar coordinates

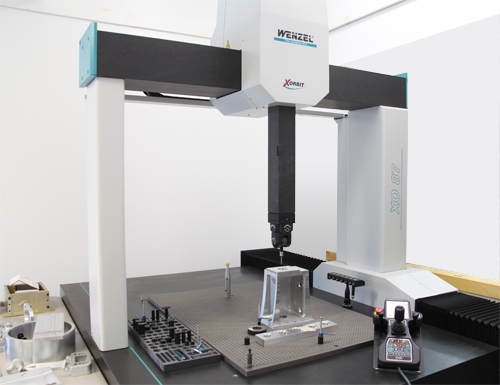

Wenzel XOrbit 87 Coordinated Measuring Machine
20"x 40" travel
X, Y, Z axis measuring range
Renishaw PH20 5-axis probe head
tool changer rack
Deltronic DH14-MPC Optical Comparator
Edge sensing 2-axis digital readout
horizontal projection
fiber-optic surface illumination
digital display of angle protractor
10x, 20x and 31.25x Lens
Rotary vise stage
14" screen
5" x 15" surface
travel: 7" longitudinal / 4.5" vertical
Mantis Elite-Cam HD stereo microscope
2x-20x magnification
24"x 24" Starrett Granite Surface Plate (Grade-A Inspection)
6" Thickness
.000150" flatness unilateral tolerance
Certifications
Currently pursuing ISO 9001 & SAE AS9100
QMS manual & calibration procedures available on request.
Supplier Center - Documents
Click this link to access the document library which supplements purchase orders supplied by Pro Star Precision Machine. Current and detailed part order information, like codes, will be described here.
Hours
Mon - Fri | 7am - 5pm
Sat - Sun | Closed
Contact
Brian Cote
(603) 834-4488
bcote@prostarmachine.com
Shipping & Receiving (603) 518-8572

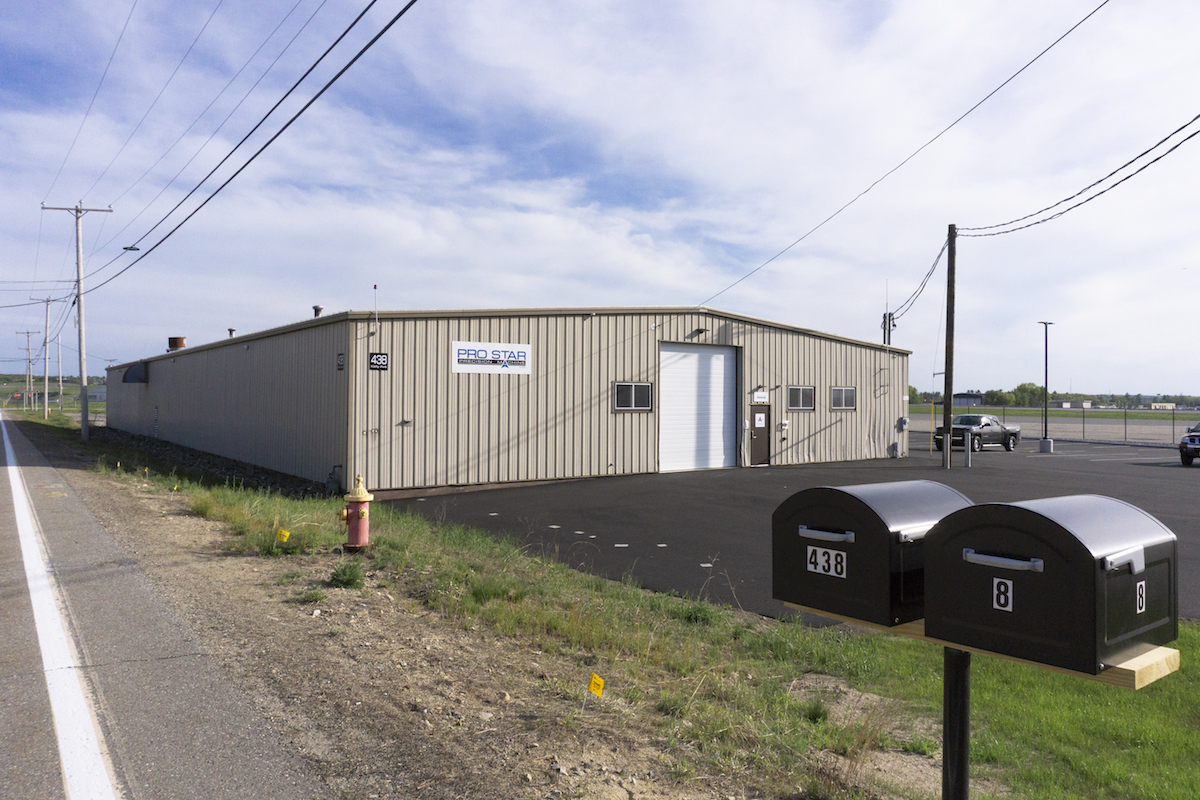

Address
438 Kelly Ave
Londonderry, NH 03053
United States
HL Tooling, LCC from Northwood NH has a new name; Pro Star Precision Machine, LLC.
